Articulated Aerial Platform

Showing all 9 results

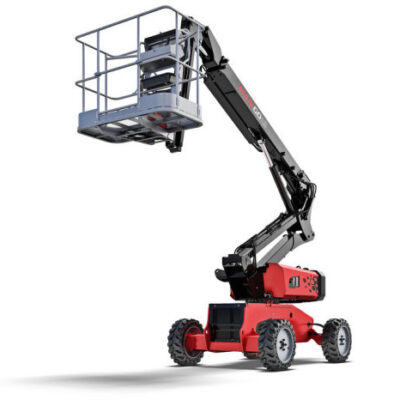

  • Manitou Mango 12

    MAN’GO 12

    Lifting height 11.91 m 39’0″
    Lifting capacity 230 kg 507 lb
    Weight (unladen) 4150 kg 9149 lb
    Engine Kubota E2B
    Power 19.4W 26.4 hp

    Performances

    Lifting height 11.91 m 39’0″
    Lifting capacity 230 kg 507 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 2
    Max reach 6.69 m 21’11”
    Overhang 4.8 m 15’8″
    Moving speed 5.2 kmh 17 mph
    Working speed 0.8 kmh 2.62 mph

    Dimensions

    Overall length 5.5 m 18’0″
    Overall length (folded) 4.5 m 14’9″
    Wheelbase length 2 m 6’7″
    Width 1.8 m 5’11”
    Height 2.015 m 6’7″
    Overall height (folded) 2.495 m 8’2″
    Weight (unladen) 4150 kg 9149 lb
    Turning radius 4.115 m 13’6″
    Ground clearance 0.32 m 1’0″

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Engine manufacturer type D1105-E2B
    Power 26.4 cv 26 hp
    Power 19.4 KW
    Number of cylinders 3
    Total capacity 1123 cm3 68.52 in3
    Injection Direct
    Cooling Water
    Transmission type Hydrostatic

    Hydraulic

    Pressure 400 bars
    Hydraulic oil tank volume 60 l 15.85 gal

    Other Specifications

    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/2
    Number of steering wheels (front/rear) 2/0
    Number of braking wheels (front/rear) 2/2
    Tyre dimensions (front) 720 x 240 mm
    Tyre dimensions (rear) 720 x 240 mm
    Environmental noise levels 100 dB
    Vibrations affecting hands/arms <2.5 m/s

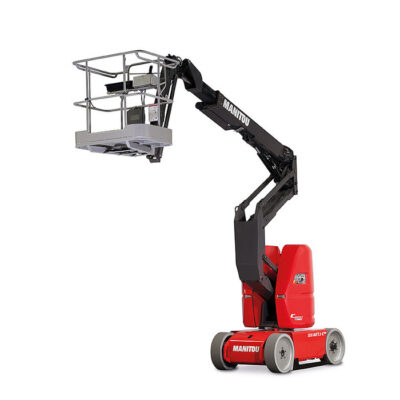

  • 120 AETJ-C

    120 AETJ-C



    Lifting height 11.95 m 39’2″
    Lifting capacity 200 kg 440 lb
    Weight (unladen) 6660 kg 14652 lb

    Performances

    Lifting height 11.95 m 39’2″
    Lifting capacity 200 kg 440 lb
    Lifting capacity (no. of people) 2
    Moving speed 6 kmh 3.72 mph
    Working speed 0.6 kmh 0.37 mph

    Dimensions

    Overall length 5.48 m 17’12”
    Width 1.2 m 3’11”
    Height 1.99 m 6’6″
    Weight (unladen) 6660 kg 14652 lb
    Turning radius 3.25 m 10’8″

    Engine / Battery

    Energy Electric
    Voltage 48 V
    Amperage 240 Ah

    Other Specification

    Standard tyres No marking
    Number of wheels (front/rear) 2/2

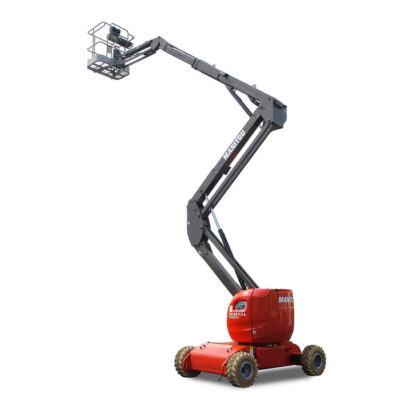

  • 150 AETJ-L BI

    150 AETJ-L BI



    Lifting height 15.4 m 50’6″
    Lifting capacity 230 kg 506 lb
    Weight (unladen) 6435 kg 14157 lb

    Performances

    Lifting height 15.4 m 50’6″
    Lifting capacity 230 kg 506 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 2
    Moving speed 6 kmh 3.7 mph
    Working speed 0.6 kmh 0.372 mph

    Dimensions

    Overall length 6.1 m 20’0″
    Width 1.9 m 6’3″
    Height 2.1 m 6’11”
    Weight (unladen) 6435 kg 14157 lb
    Turning radius 4.27 m 14’0″
    Ground clearance 0.17 m 0’7″

    Engine / Battery

    Energy Bi-Energy
    Engine brand Lombardini
    Power 9.2 KW
    Amperage 300 Ah

    Other Specification

    Number of wheels (front/rear) 2/2

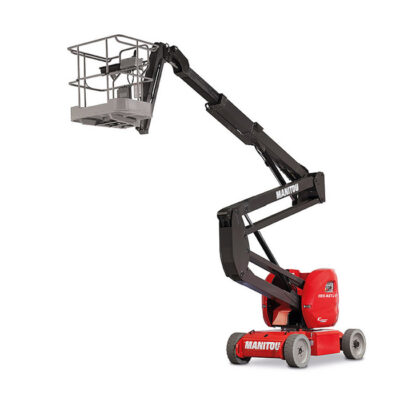

  • 150 AETJ-C

    150 AETJ-C



    Lifting height 15 m 49’2″
    Lifting capacity 200 kg 440 lb
    Weight (unladen) 6700 kg 14740 lb

    Performances

    Lifting height 15 m 49’2″
    Lifting capacity 200 kg 440 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 2
    Moving speed 5 kmh 3.1 mph
    Working speed 0.6 kmh 0.372 mph

    Dimensions

    Overall length 6.05 m 19’10”
    Width 1.5 m 4’11”
    Height 1.97 m 6’6″
    Weight (unladen) 6700 kg 14740 lb
    Turning radius 3.96 m 12’12”
    Ground clearance 0.14 m 0’6″

    Engine / Battery

    Energy Electric
    Voltage 48 V
    Amperage 240 Ah

    Other Specification

    Standard tyres No marking
    Number of wheels (front/rear) 2/2

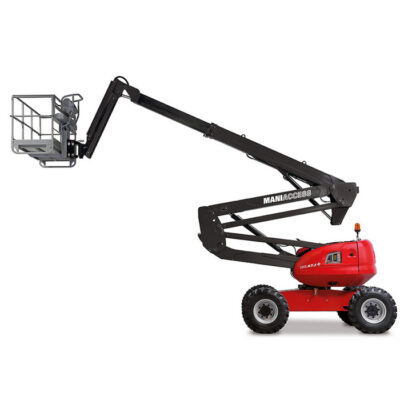

  • 160 ATJ +

    160 ATJ +



    Lifting height 16.25 m 53’4″
    Lifting capacity 400 kg 880 lb
    Weight (unladen) 8100 kg 17820 lb

    Performances

    Lifting height 16.25 m 53’4″
    Lifting capacity 400 kg 880 lb
    Lifting capacity (no. of people) 3
    Exterior lifting capacity (no. of people) 3
    Moving speed 6 kmh 3.7 mph
    Working speed 0.8 kmh 0.496 mph

    Dimensions

    Overall length 6.93 m 22’9″
    Overall length (folded) 4.94 m 16’2″
    Width 2.3 m 7’6″
    Height 2.37 m 7’9″
    Overall height (folded) 2.7 m 8’10”
    Weight (unladen) 8100 kg 17820 lb
    Turning radius 3.68 m 12’1″
    Turning radius (basket unfolded) 6.39 m 20’12”
    Ground clearance 0.42 m 1’5″

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Engine type Stage 3A
    Engine manufacturer type V2403-M
    Power 45 cv 45 hp
    Number of cylinders 4
    Injection Direct
    Cooling Water
    Transmission type Hydrostatic

    Other Specification

    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/2
    Number of steering wheels (front/rear) 2/2
    Tyre dimensions (front) 18″
    Tyre dimensions (rear) 18″
  • 170 AETJ-L BI

    170 AETJ-L BI



    Lifting height 17 m 55’9″
    Lifting capacity 230 kg 506 lb
    Weight (unladen) 7435 kg 16357 lb

    Performances

    Lifting height 17 m 55’9″
    Lifting capacity 230 kg 506 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 2
    Moving speed 6 kmh 3.7 mph
    Working speed 0.6 kmh 0.372 mph

    Dimensions

    Overall length 6.97 m 22’10”
    Width 1.9 m 6’3″
    Height 2.1 m 6’11”
    Weight (unladen) 7435 kg 16357 lb
    Turning radius 4.27 m 14’0″
    Ground clearance 0.17 m 0’7″

    Engine / Battery

    Energy Bi-Energy
    Engine brand Lombardini
    Power 9.2 KW
    Amperage 300 Ah

    Other Specification

    Number of wheels (front/rear) 2/2

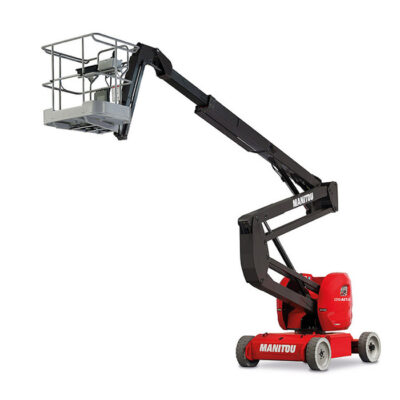

  • 170 AETJ-L

    170 AETJ-L



    Lifting height 16.9 m 55’5″
    Lifting capacity 200 kg 440 lb
    Weight (unladen) 6910 kg 15202 lb

    Performances

    Lifting height 16.9 m 55’5″
    Lifting capacity 200 kg 440 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 2
    Moving speed 5 kmh 3.1 mph
    Working speed 0.6 kmh 0.372 mph

    Dimensions

    Overall length 6.84 m 22’5″
    Width 1.75 m 5’9″
    Height 1.97 m 6’6″
    Weight (unladen) 6910 kg 15202 lb
    Turning radius 4.3 m 14’1″
    Ground clearance 0.14 m 0’6″

    Engine / Battery

    Energy Electric
    Amperage 240 Ah

    Other Specification

    Standard tyres No marking
    Number of wheels (front/rear) 2/2
  • 180 ATJ

    180 ATJ



    Lifting height 17.65 m 57’11”
    Lifting capacity 230 kg 506 lb
    Weight (unladen) 8090 kg 17798 lb

    Performances

    Lifting height 17.65 m 57’11”
    Lifting capacity 230 kg 506 lb
    Moving speed 6 kmh 3.7 mph
    Working speed 0.8 kmh 0.5 mph

    Dimensions

    Overall length 7.77 m 25’6″
    Width 2.3 m 7’6″
    Height 2.37 m 7’9″
    Weight (unladen) 8090 kg 17798 lb
    Turning radius 6.87 m 22’6″
    Ground clearance 0.43 m 1’5″

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Engine type Stage 3A
    Power 35 cv 35 hp

    Other Specification

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/2
  • 200 ATJ

    200 ATJ



    Lifting height 20 m 65’7″
    Lifting capacity 230 kg 506 lb
    Weight (unladen) 10000 kg 22000 lb

    Performances

    Lifting height 20 m 65’7″
    Lifting capacity 230 kg 506 lb
    Lifting capacity (no. of people) 2
    Moving speed 4.7 kmh 2.9 mph
    Working speed 0.8 kmh 0.5 mph

    Dimensions

    Overall length 8.5 m 27’11”
    Overall length (folded) 6.3 m 20’8″
    Width 2.4 m 7’10”
    Height 2.7 m 8’10”
    Overall height (folded) 3.15 m 10’4″
    Weight (unladen) 10000 kg 22000 lb
    Turning radius 3.95 m 12’12”
    Turning radius (basket unfolded) 7.45 m 24’5″

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Power 45 cv

    Other Specification

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/2
