Vertical Mast Aerial Platform

Showing all 3 results

  • 80 VJR

    80 VJR



    Lifting height 7.7 m 25’3″
    Lifting capacity 200 kg 440 lb
    Weight (unladen) 2250 kg 4950 lb

    Performances

    Lifting height 7.7 m 25’3″
    Lifting capacity 200 kg 440 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 1
    Max reach 3.25 m 10’8″
    Overhang 4.23 m 13’10”
    Moving speed 4.5 kmh 2.8 mph
    Working speed 0.65 kmh 0.403 mph

    Dimensions

    Overall length 2.82 m 9’3″
    Overall length (folded) 2.82 m 9’3″
    Wheelbase length 1.2 m 3’11”
    Width 0.99 m 3’3″
    Height 1.99 m 6’6″
    Overall height (folded) 1.99 m 6’6″
    Weight (unladen) 2250 kg 4950 lb
    Turning radius 1.98 m 6’6″
    Turning radius (basket unfolded) 1.98 m 6’6″
    Ground clearance 0.1 m 0’4″

    Engine / Battery

    Energy Electric
    Voltage 24 V
    Amperage 250 Ah

    Other Specification

    Standard tyres No marking
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 0/2
    Number of steering wheels (front/rear) 2/0
    Tyre dimensions (front) 16-5-11 1/4
    Tyre dimensions (rear) 16-5-11 1/4

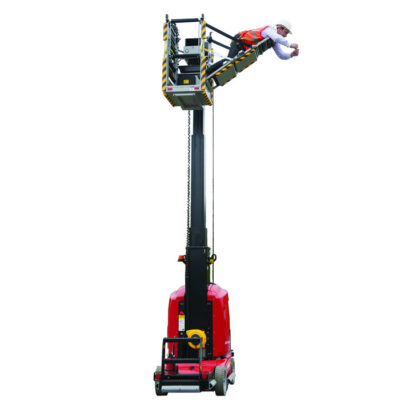

  • 90 V'Air

    90 V’Air



    Lifting height 9.9 m 32’6″
    Lifting capacity 200 kg 440 lb
    Weight (unladen) 2650 kg 5830 lb

    Performances

    Lifting height 9.9 m 32’6″
    Lifting capacity 200 kg 440 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 1
    Max reach 3.15 m 10’4″
    Overhang 6.67 m 21’11”
    Moving speed 4.5 kmh 2.8 mph
    Working speed 0.65 kmh 0.403 mph

    Dimensions

    Overall length 2.82 m 9’3″
    Overall length (folded) 2.82 m 8’3″
    Wheelbase length 1.2 m 3’11”
    Width 0.99 m 3’3″
    Height 1.99 m 6’6″
    Overall height (folded) 1.99 m 6’6″
    Weight (unladen) 2650 kg 5830 lb
    Turning radius 1.98 m 6’6″
    Turning radius (basket unfolded) 1.98 m 6’6″
    Ground clearance 0.1 m 0’4″

    Engine / Battery

    Energy Electric
    Voltage 24 V
    Amperage 250 Ah

    Other Specification

    Standard tyres No marking
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 0/2
    Number of steering wheels (front/rear) 2/0
    Tyre dimensions (front) 16-5-11 1/4
    Tyre dimensions (rear) 16-5-11 1/4

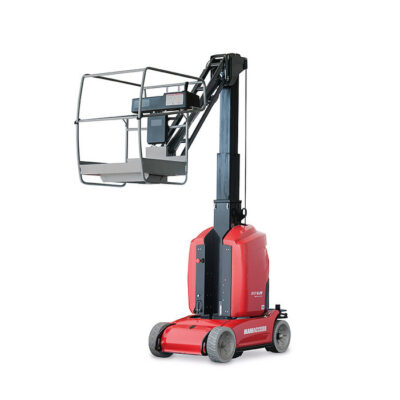

  • 100 VJR

    100 VJR



    Lifting height 9.9 m 32’6″
    Lifting capacity 200 kg 440 lb
    Weight (unladen) 2650 kg 5830 lb

    Performances

    Lifting height 9.9 m 32’6″
    Lifting capacity 200 kg 440 lb
    Lifting capacity (no. of people) 2
    Exterior lifting capacity (no. of people) 1
    Max reach 3.15 m 10’4″
    Overhang 6.67 m 21’11”
    Moving speed 4.5 kmh 2.8 mph
    Working speed 0.65 kmh 0.403 mph

    Dimensions

    Overall length 2.82 m 9’3″
    Overall length (folded) 2.82 m 8’3″
    Wheelbase length 1.2 m 3’11”
    Width 0.99 m 3’3″
    Height 1.99 m 6’6″
    Overall height (folded) 1.99 m 6’6″
    Weight (unladen) 2650 kg 5830 lb
    Turning radius 1.98 m 6’6″
    Turning radius (basket unfolded) 1.98 m 6’6″
    Ground clearance 0.1 m 0’4″

    Engine / Battery

    Energy Electric
    Voltage 24 V
    Amperage 250 Ah

    Other Specification

    Standard tyres No marking
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 0/2
    Number of steering wheels (front/rear) 2/0
    Tyre dimensions (front) 16-5-11 1/4
    Tyre dimensions (rear) 16-5-11 1/4
