Heavy Lift Telescopic Telehandler
Showing all 4 results
-
MHT-X 790
Lifting height 17.9 m 58’9″ Lifting capacity 4000 kg 8800 lb Weight (unladen) 13020 kg 28700 lb Engine JOHN DEERE 3A Power 102 KW 137 hp Performances
Lifting height 17.9 m 58’9″ Lifting capacity 4000 kg 8800 lb Breakout force 8600 dan Moving speed 32 kmh 19.8 mph Dimensions
Length (up to the back of the fork) 5.27 m 17’3″ Width 2.47 m 8’1″ Overall width (stabilizers lowered) 2.47 m 8’1″ Height 2.48 m 8’2″ Weight (unladen) 13020 kg 28700 lb Turning radius 4.88 m 16’0″ Engine / Battery
Energy Diesel Engine type Stage 3A Transmission type Hydrostatic Other Specification
Driving type Seated Standard tyres Pneumatic Number of wheels 4 Number of wheels (front) 2 Number of wheels (rear) 2 Number of drive wheels (front) 2 Number of drive wheels (rear) 2 -

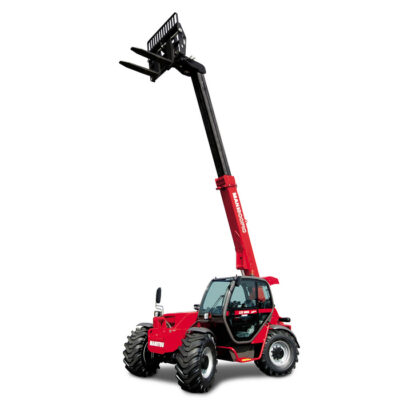

MHT-X 860
Lifting height 8.1 m 26’7″ Lifting capacity 6000 kg 13200 lb Weight (unladen) 11580 kg 25476 lb Moving speed 28 kmh 17.4 mph Performances
Lifting height 8.1 m 26’7″ Lifting capacity 6000 kg 13200 lb Breakout force 10500 dan Moving speed 28 kmh 17.4 mph Dimensions
Length (up to the back of the fork) 5.36 m 17’7″ Width 2.4 m 7’10” Height 2.46 m 8’1″ Weight (unladen) 11580 kg 25476 lb Turning radius 3.78 m 12’5″ Ground clearance 0.41 m 1’4″ Engine / Battery
Energy Diesel Engine brand Perkins Engine type Stage 3A Power 144 cv Power 106 KW Transmission type Hydrostatic Hydraulic
Flow 140 l/min Pressure 275 bars Other specifications
Driving type Seated Standard tyres Pneumatic Number of wheels 4 Number of wheels (front) 2 Number of wheels (rear) 2 Number of drive wheels (front) 2 Number of drive wheels (rear) 2 -
MHT-X 10130
Lifting height 17.9 m 58’9″ Lifting capacity 4000 kg 8800 lb Weight (unladen) 13020 kg 28700 lb Engine JOHN DEERE 3A Power 102 KW 137 hp Performances
Lifting height 9.62 m 31’7″ Lifting capacity 13000 kg 28660 lb Max reach 5.17 m 16’12” Max reach capacity 3500 kg 7716 lb Drawbar pull 10800 dan 24279 lbf Moving speed 31 kmh 19.26 mph Dimensions
Length (up to the back of the fork) 6.14 m 20’2″ Wheelbase length 3.37 m 11’1″ Width 2.51 m 8’3″ Height 2.99 m 9’10” Weight (unladen) 18490 kg 40763 lb Turning radius 5.34 m 17’6″ Ground clearance 0.44 m 1’5″ Engine / Battery
Energy Diesel Engine brand Mercedes Engine type Stage III / Tier III Engine manufacturer type OM 934 LA. E3A/1 Power 175 cv 176 hp Power 129 KW Max. Torque @ Rotation 675 Nm @ 1600 tr/min Number of cylinders 4 Total capacity 4250 cm3 Injection Direct Cooling Water Voltage 24 V Amperage 120 Ah Transmission type Hydrostatic Hydraulic
Flow 180 l/min Pressure 300 bars Hydraulic oil tank volume 290 l 76.6 gal Other Specification
Driving type Seated Standard tyres Pneumatic Number of wheels 4 Number of wheels (front) 2 Number of wheels (rear) 2 Number of drive wheels (front) 2 Number of drive wheels (rear) 2 Tyre dimensions (front) 17.5 R 25 Tyre dimensions (rear) 17.5 R 25 Driving position noise levels 80 dB Environmental noise levels 107 dB Vibrations affecting hands/arms <2.5 m/s -
MHT-X 10180
Lifting height 9.7 m 31’10” Lifting capacity 18000 kg 39600 lb Weight (unladen) 24080 kg 52976 lb Moving speed 25 kmh 15.5 mph Performances
Lifting height 9.7 m 31’10” Lifting capacity 18000 kg 39600 lb Moving speed 25 kmh 15.5 mph Dimensions
Length (up to the back of the fork) 6.6 m 21’8″ Width 2.5 m 8’2″ Height 2.93 m 9’7″ Weight (unladen) 24080 kg 52976 lb Turning radius 5.68 m 18’8″ Ground clearance 0.44 m 1’5″ Engine / Battery
Energy Diesel Engine brand Mercedes Engine type Stage 3A Power 175 cv Power 129 KW Transmission type Hydrostatic Hydraulic
Flow 170 l/min Pressure 350 bars Other specifications
Driving type Seated Standard tyres Pneumatic Number of wheels 4 Number of wheels (front) 2 Number of wheels (rear) 2 Number of drive wheels (front) 2 Number of drive wheels (rear) 2
