Manitou
Showing 91–99 of 161 results
-

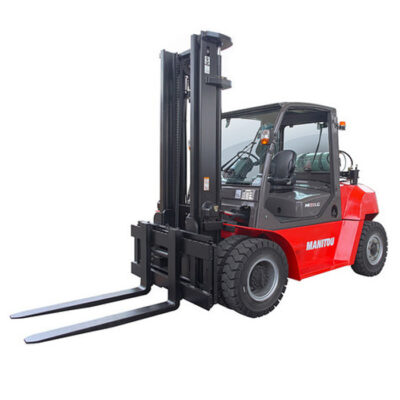

MI 50 L G
- Length : 3.49 m
- Width : 1.99 m
- Weight : 8295 kg
- Engine : PSI
- Power : 100 cv
- Lifting capacity : 5000 kg
-
MI-X 50 L D
- Length : 3.49 m
- Width : 1.99 m
- Weight : 8295 kg
- Engine : Cummins
- Power : 100 cv
- Lifting capacity : 5000 kg
-
MI 50 L D
- Length : 3.49 m
- Width : 1.99 m
- Weight : 8295 kg
- Engine : Cummins
- Power : 101 cv
- Lifting capacity : 5000 kg
-
MSI 50
Lifting height 3.7 m 12’2″ Lifting capacity 5000 kg 11000 lb Weight (unladen) 8420 kg 18524 lb Engine Perkins 3B Power 55 KW Performances
Lifting height 3.7 m 12’2″ Lifting capacity 5000 kg 11000 lb Drawbar pull 3350 dan Moving speed 22 kmh 13.6 mph Mast inclination (front/rear) ( 10 ° / 12 ° ) Dimensions
Length (up to the back of the fork) 3.38 m 11’1″ Total length (fork included) 4.584 m 15’0″ Wheelbase length 2.075 m 6’10” Width 1.73 m 5’8″ Fork carriage width 1.67 m 5’6″ Aisle width (with a 1000 x 1200 palette) 5.04 m 16.5 Aisle width (with a 800 x 1200 palette) 5.24 m 17.2 Height 2.78 m 9’1″ Weight (unladen) 8420 kg 18524 lb Front axle weight (laden) 11467 kg 25280 lb Front axle weight (unladen) 3489 kg 7692 lb Rear axle weight (laden) 1953 kg 4306 lb Rear axle weight (unladen) 4931 kg 10871 lb Turning radius 2.95 m 9’8″ Ground clearance 0.23 m 0’9″ Engine / Battery
Energy Diesel Engine brand Perkins Engine type Stage 3B Engine manufacturer type 854 F 10794 Power 55 KW Number of cylinders 4 Total capacity 3400 cm3 207.48 in3 Transmission type Hydrostatic Hydraulic
Flow 103 l/min Pressure 230 bars Other specifications
Standard tyres Pneumatic Number of wheels (front/rear) 2/2 Number of drive wheels (front/rear) 2/0 Number of steering wheels (front/rear) 0/2 Tyre dimensions (front) 315/70 R22.5 Tyre dimensions (rear) 225/75 R15 Standard mast type Duplex Standard mast height (when raised) 2.775 m 9’1″ Standard mast height (when raised) 4.672 m 15’4″ Driving position noise levels 81 dB -
MSI 40
Lifting height 3.7 m 12’2″ Lifting capacity 4000 kg 8800 lb Weight (unladen) 6980 kg 15356 lb Engine Perkins 3B Power 55 KW Performances
Lifting height 3.7 m 12’2″ Lifting capacity 4000 kg 8800 lb Drawbar pull 3180 dan Moving speed 22 kmh 13.6 mph Mast inclination (front/rear) ( 10 ° / 12 ° ) Dimensions
Length (up to the back of the fork) 3.29 m 10’10” Total length (fork included) 4.494 m 14’9″ Wheelbase length 2.075 m 6’10” Width 1.73 m 5’8″ Fork carriage width 1.67 m 5’6″ Aisle width (with a 1000 x 1200 palette) 4.76 m 15.6 Aisle width (with a 800 x 1200 palette) 4.9 m 16.26 Height 2.78 m 9’1″ Weight (unladen) 6980 kg 15356 lb Front axle weight (laden) 9245 kg 20382 lb Front axle weight (unladen) 3210 kg 7077 lb Rear axle weight (laden) 1735 kg 3825 lb Rear axle weight (unladen) 3770 kg 8311 lb Turning radius 2.87 m 9’5″ Ground clearance 0.23 m 0’9″ Engine / Battery
Energy Diesel Engine brand Perkins Engine type Stage 3B Engine manufacturer type 854 F 10794 Power 55 KW Number of cylinders 4 Total capacity 3400 cm3 207.48 in3 Transmission type Hydrostatic Hydraulic
Flow 103 l/min Pressure 230 bars Other specifications
Standard tyres Pneumatic Number of wheels (front/rear) 2/2 Number of drive wheels (front/rear) 2/0 Number of steering wheels (front/rear) 0/2 Tyre dimensions (front) 315/70 R22.5 Tyre dimensions (rear) 225/75 R15 Standard mast type Duplex Standard mast height (when raised) 2.775 m 9’1″ Standard mast height (when raised) 4.677 m 15’4″ Driving position noise levels 81 dB -
MSI 35 FT4
- Length : 3.03 m
- Width : 1.32 m
- Height : 2.3 m
- Weight : 4845 kg
- Engine : Kubota
- Lifting capacity : 3500 kg
-
MSI 35 3B
- Length : 3.03 m
- Width : 1.32 m
- Height : 2.3 m
- Weight : 4845 kg
- Engine : Kubota
- Lifting capacity : 3500 kg
-
MSI 35
Lifting height 3.3 m 10’10” Lifting capacity 3500 kg 7700 lb Weight (unladen) 8420 kg 18524 lb Engine Perkins 3B Power 55 KW Performances
Lifting height 3.3 m 10’10” Lifting capacity 3500 kg 7700 lb Drawbar pull 2005 dan Moving speed 20 kmh 12.4 mph Mast inclination (front/rear) ( 10 ° / 12 ° ) Dimensions
Length (up to the back of the fork) 3.03 m 9’11” Total length (fork included) 4.13 m 13’7″ Wheelbase length 1.8 m 5’11” Width 1.32 m 4’4″ Fork carriage width 1.26 m 4’2″ Aisle width (with a 1000 x 1200 palette) 4.59 m 15.06 Aisle width (with a 800 x 1200 palette) 4.7 m 15.38 Height 2.3 m 7’6″ Weight (unladen) 4845 kg 10659 lb Front axle weight (laden) 7430 kg 16380 lb Front axle weight (unladen) 1730 kg 3814 lb Rear axle weight (laden) 915 kg 2017 lb Rear axle weight (unladen) 3115 kg 6867 lb Turning radius 2.59 m 8’6″ Ground clearance 0.26 m 0’10” Engine / Battery
Energy Diesel Engine brand Kubota Engine type Stage 3A Engine manufacturer type V2403 M TE3 Power 36 KW Number of cylinders 4 Total capacity 2434 cm3 148.5 in3 Transmission type Hydrostatic Hydraulic
Flow 77 l/min Pressure 190 bars Other specifications
Standard tyres Pneumatic Number of wheels (front/rear) 2/2 Number of drive wheels (front/rear) 2/0 Number of steering wheels (front/rear) 0/2 Tyre dimensions (front) 275/70 R22.5 Tyre dimensions (rear) 7.00X12 14 PR Standard mast type Duplex Free lift (standard mast, lowered) 0.135 m 0’5″ Standard mast height (when raised) 2.3 m 7’6″ Standard mast height (when raised) 4.193 m 13’9″ -
MSI 30 FT4
- Length : 2.98 m
- Width : 1.32 m
- Height : 2.3 m
- Weight : 4704 kg
- Engine : Kubota
- Lifting capacity : 3000 kg
