Rough Terrain Forklift

Showing all 9 results

  • Manitou Masted Forklift Trucks mh25-4

    MH 25

    Lifting height 3.3 m 10’10”
    Lifting capacity 2500 kg 5500 lb
    Weight (unladen) 4260 kg 9392 lb
    Moving speed 14 kmh 8.68 mph
    Engine  Kubota Stage 3A

    Performances

    Lifting height 3.3 m 10’10”
    Lifting capacity 2500 kg 5500 lb
    Drawbar pull 3550 dan 7981 lbf
    Moving speed 14 kmh 8.68 mph
    Mast inclination (front/rear) ( 10 ° / 12 ° )

    Dimensions

    Length (up to the back of the fork) 2.95 m 9’8″
    Total length (fork included) 4.045 m 13’3″
    Wheelbase length 1.8 m 5’11”
    Width 1.45 m 4’9″
    Fork carriage width 1.26 m 4’2″
    Aisle width (with a 1000 x 1200 palette) 5.09 m 16.7
    Aisle width (with a 800 x 1200 palette) 5.29 m 17.35
    Height 2.1 m 6’11”
    Weight (unladen) 4260 kg 9392 lb
    Front axle weight (laden) 5812 kg 12813 lb
    Front axle weight (unladen) 1750 kg 3858 lb
    Rear axle weight (laden) 948 kg 2090 lb
    Rear axle weight (unladen) 2510 kg 5534 lb
    Turning radius 3.265 m 10’8″
    Ground clearance 0.26 m 0’10”

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Engine type Stage 3A
    Engine manufacturer type V2403 M-E3B
    Power 36 KW
    Number of cylinders 4
    Total capacity 2434 cm3 148.5 in3
    Transmission type Hydrostatic

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/2
    Number of steering wheels (front/rear) 0/0
    Tyre dimensions (front) 280/80 R20 XMCL
    Tyre dimensions (rear) 27.10 – 12 IC 30 14PR
    Standard mast type Duplex
    Free lift (standard mast, lowered) 0.13 m 0’5″
    Standard mast height (when raised) 1.835 m 6’0″
    Standard mast height (when raised) 4.07 m 13’4″
    Driving position noise levels 104 dB

    Hydraulic

    Pressure 170 bars

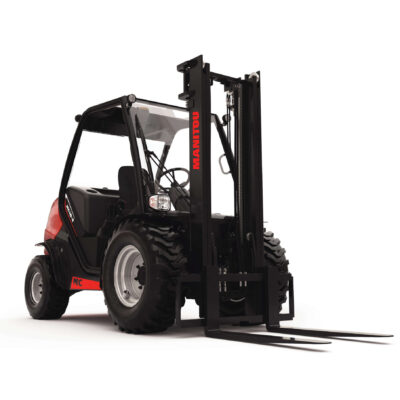

  • mc 18 rough terrain forklift

    MC-18

    Lifting height 3.3 m 10’10”
    Lifting capacity 1800 kg 3960 lb
    Weight (unladen) 3405 kg 7491 lb
    Moving speed 25 kmh 15.5 mph
    Engine  Kubota Stage 3B

    Performances

    Lifting height 3.3 m 10’10”
    Lifting capacity 1800 kg 3960 lb
    Drawbar pull 108 dan
    Moving speed 25 kmh 15.5 mph
    Mast inclination (front/rear) ( 10 ° / 12 ° )

    Dimensions

    Length (up to the back of the fork) 2.95 m 9’8″
    Total length (fork included) 4.05 m 13’3″
    Wheelbase length 1.9 m 6’3″
    Width 1.45 m 4’9″
    Fork carriage width 1.26 m 4’2″
    Aisle width (with a 1000 x 1200 palette) 4.4 m 14.44
    Height 2.34 m 7’8″
    Weight (unladen) 3405 kg 7491 lb
    Front axle weight (laden) 4555 kg 10021 lb
    Front axle weight (unladen) 1625 kg 3575 lb
    Rear axle weight (laden) 650 kg 1430 lb
    Rear axle weight (unladen) 1780 kg 3916 lb
    Turning radius 2.58 m 8’6″
    Ground clearance 0.32 m 1’1″

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Engine type Stage 3B
    Power 26.5 KW
    Number of cylinders 4
    Total capacity 1498 cm3
    Transmission type Hydrostatic



    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/0
    Tyre dimensions (front) 12.5/80-18/12
    Tyre dimensions (rear) 7.00-12/12
    Standard mast type Duplex
    Free lift (standard mast, lowered) 0.09 m 0’3″
    Standard mast height (when raised) 2.34 m 7’8″
    Standard mast height (when raised) 4.18 m 13’8″
    Driving position noise levels 79 dB
    Environmental noise levels 103 dB
  • Manitou Masted Forklift Trucks msi 50-4

    M-X 70-2

    Lifting height 4 m 13’1″
    Lifting capacity 7000 kg 15400 lb
    Weight (unladen) 9810 kg 21582 lb
    Engine Perkins 3A
    Power 95 ch 70 KW

    Performances

    Lifting height 4 m 13’1″
    Lifting capacity 7000 kg 15400 lb
    Drawbar pull 7960 dan
    Moving speed 24 kmh 14.9 mph
    Mast inclination (front/rear) ( 15 ° / 15 ° )

    Dimensions

    Length (up to the back of the fork) 4.16 m 13’8″
    Wheelbase length 2.49 m 8’2″
    Width 2.15 m 7’1″
    Height 2.44 m 8’0″
    Weight (unladen) 9810 kg 21582 lb
    Turning radius 4.21 m 13’10”
    Ground clearance 0.39 m 1’3″

    Engine / Battery

    Energy Diesel
    Engine brand Perkins
    Engine type 3A
    Power 95 ch
    Power 70 KW
    Injection Direct
    Cooling Water
    Transmission type Torque converter

    Hydraulic

    Flow 85 l/min
    Pressure 230 bars

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/2
    Tyre dimensions (front) 18R19.5XFTL (445/65R19.5)
    Tyre dimensions (rear) 265/70R19.5HTR1
    Standard mast type Duplex
    Driving position noise levels 76 dB
    Environmental noise levels 103 dB
    Vibrations affecting hands/arms 2.5 m/s
  • Manitou Masted Forklift Trucks msi 30-2

    M-X 30-2

    Lifting height 3.7 m 12’2″
    Lifting capacity 3000 kg 6600 lb
    Weight (unladen) 5430 kg  11946 lb
    Moving speed 24 kmh 14.9 mph
    Engine  Perkins Stage 3A

    Performances

    Lifting height 3.7 m 12’2″
    Lifting capacity 3000 kg 6600 lb
    Drawbar pull 4250 dan
    Moving speed 24 kmh 14.9 mph
    Mast inclination (front/rear) ( 6 ° / 12 ° )

    Dimensions

    Length (up to the back of the fork) 3.63 m 11’11”
    Width 2.1 m 6’11”
    Height 2.46 m 8’1″
    Weight (unladen) 5430 kg 11946 lb
    Turning radius 4.1 m 13’5″
    Ground clearance 0.38 m 1’3″

    Engine / Battery

    Energy Diesel
    Engine brand Perkins
    Engine type Stage 3A
    Power 95 ch
    Power 70 KW
    Injection Direct
    Cooling Water
    Transmission type Torque converter

    Hydraulic

    Flow 85 l/min
    Pressure 185 bars



    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/
    Tyre dimensions (front) 440/80 R24
    Tyre dimensions (rear) 10R17.5G291134M
    Standard mast type Duplex
  • Manitou Masted Forklift Trucks M-X 50-2

    M-X 50-2

    Lifting height 3.7 m 12’2″
    Lifting capacity 5000 kg 11000 lb
    Weight (unladen) 7470 kg 16434 lb
    Engine Perkins 3A
    Power 95 ch 70 KW

    Performances

    Lifting height 3.7 m 12’2″
    Lifting capacity 5000 kg 11000 lb
    Drawbar pull 6230 dan
    Moving speed 22 kmh 13.6 mph
    Mast inclination (front/rear) ( 15 ° / 15 ° )

    Dimensions

    Length (up to the back of the fork) 3.75 m 12’4″
    Wheelbase length 2.12 m 6’12”
    Width 2.1 m 6’11”
    Height 2.42 m 7’11”
    Weight (unladen) 7470 kg 16434 lb
    Turning radius 4.16 m 13’8″
    Ground clearance 0.36 m 1’2″

    Engine / Battery

    Energy Diesel
    Engine brand Perkins
    Engine type Stage 3A
    Power 95 ch
    Power 70 KW
    Injection Direct
    Cooling Water
    Transmission type Torque converter

    Hydraulic

    Flow 85 l/min
    Pressure 210 bars

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/
    Tyre dimensions (front) 18-19.5A22418PRTL
    Tyre dimensions (rear) 10R17.5G291134M
    Standard mast type Duplex
    Driving position noise levels 76 dB
    Environmental noise levels 103 dB
    Vibrations affecting hands/arms 2.5 m/s



  • Manitou Masted Forklift Trucks msi 50-4

    M-X 50-4

    Lifting height 3.7 m 12’2″
    Lifting capacity 5000 kg 11000 lb
    Weight (unladen) 7660 kg 16852 lb
    Engine Perkins 3A
    Power 95 ch 70 KW

    Performances

    Lifting height 3.7 m 12’2″
    Lifting capacity 5000 kg 11000 lb
    Drawbar pull 10360 dan
    Moving speed 24 kmh 14.9 mph
    Mast inclination (front/rear) ( 15 ° / 15 ° )

    Dimensions

    Length (up to the back of the fork) 3.75 m 12’4″
    Wheelbase length 2.12 m 6’12”
    Width 2.1 m 6’11”
    Height 2.42 m 7’11”
    Weight (unladen) 7470 kg 16434 lb
    Turning radius 4.16 m 13’8″
    Ground clearance 0.36 m 1’2″

    Engine / Battery

    Energy Diesel
    Engine brand Perkins
    Engine type Stage 3A
    Power 95 ch
    Power 70 KW
    Injection Direct
    Cooling Water
    Transmission type Torque converter

    Hydraulic

    Flow 85 l/min
    Pressure 210 bars

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/0
    Number of steering wheels (front/rear) 2/0
    Tyre dimensions (front) 18-22.5MPT0616PRTL (445/65R22.5)
    Tyre dimensions (rear) 340/80-R18XMCLTL143A8
    Standard mast type Duplex
    Driving position noise levels 76 dB
    Environmental noise levels 103 dB
    Vibrations affecting hands/arms 2.5 m/s
  • Manitou Masted Forklift Trucks msi 50

    MSI 50

    Lifting height 3.7 m 12’2″
    Lifting capacity 5000 kg 11000 lb
    Weight (unladen) 8420 kg 18524 lb
    Engine Perkins 3B
    Power   55 KW

    Performances

    Lifting height 3.7 m 12’2″
    Lifting capacity 5000 kg 11000 lb
    Drawbar pull 3350 dan
    Moving speed 22 kmh 13.6 mph
    Mast inclination (front/rear) ( 10 ° / 12 ° )

    Dimensions

    Length (up to the back of the fork) 3.38 m 11’1″
    Total length (fork included) 4.584 m 15’0″
    Wheelbase length 2.075 m 6’10”
    Width 1.73 m 5’8″
    Fork carriage width 1.67 m 5’6″
    Aisle width (with a 1000 x 1200 palette) 5.04 m 16.5
    Aisle width (with a 800 x 1200 palette) 5.24 m 17.2
    Height 2.78 m 9’1″
    Weight (unladen) 8420 kg 18524 lb
    Front axle weight (laden) 11467 kg 25280 lb
    Front axle weight (unladen) 3489 kg 7692 lb
    Rear axle weight (laden) 1953 kg 4306 lb
    Rear axle weight (unladen) 4931 kg 10871 lb
    Turning radius 2.95 m 9’8″
    Ground clearance 0.23 m 0’9″

    Engine / Battery

    Energy Diesel
    Engine brand Perkins
    Engine type Stage 3B
    Engine manufacturer type 854 F 10794
    Power 55 KW
    Number of cylinders 4
    Total capacity 3400 cm3 207.48 in3
    Transmission type Hydrostatic

    Hydraulic

    Flow 103 l/min
    Pressure 230 bars

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/0
    Number of steering wheels (front/rear) 0/2
    Tyre dimensions (front) 315/70 R22.5
    Tyre dimensions (rear) 225/75 R15
    Standard mast type Duplex
    Standard mast height (when raised) 2.775 m 9’1″
    Standard mast height (when raised) 4.672 m 15’4″
    Driving position noise levels 81 dB

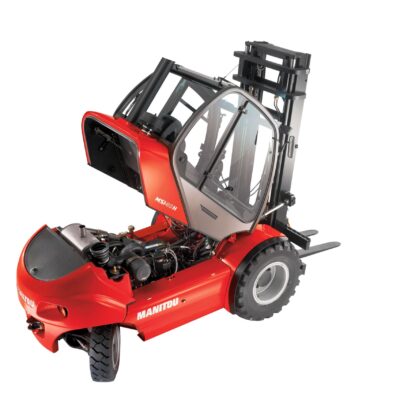

  • Manitou Masted Forklift Trucks msi 40

    MSI 40

    Lifting height 3.7 m 12’2″
    Lifting capacity 4000 kg 8800 lb
    Weight (unladen) 6980 kg 15356 lb
    Engine Perkins 3B
    Power   55 KW

    Performances

    Lifting height 3.7 m 12’2″
    Lifting capacity 4000 kg 8800 lb
    Drawbar pull 3180 dan
    Moving speed 22 kmh 13.6 mph
    Mast inclination (front/rear) ( 10 ° / 12 ° )

    Dimensions

    Length (up to the back of the fork) 3.29 m 10’10”
    Total length (fork included) 4.494 m 14’9″
    Wheelbase length 2.075 m 6’10”
    Width 1.73 m 5’8″
    Fork carriage width 1.67 m 5’6″
    Aisle width (with a 1000 x 1200 palette) 4.76 m 15.6
    Aisle width (with a 800 x 1200 palette) 4.9 m 16.26
    Height 2.78 m 9’1″
    Weight (unladen) 6980 kg 15356 lb
    Front axle weight (laden) 9245 kg 20382 lb
    Front axle weight (unladen) 3210 kg 7077 lb
    Rear axle weight (laden) 1735 kg 3825 lb
    Rear axle weight (unladen) 3770 kg 8311 lb
    Turning radius 2.87 m 9’5″
    Ground clearance 0.23 m 0’9″

    Engine / Battery

    Energy Diesel
    Engine brand Perkins
    Engine type Stage 3B
    Engine manufacturer type 854 F 10794
    Power 55 KW
    Number of cylinders 4
    Total capacity 3400 cm3 207.48 in3
    Transmission type Hydrostatic

    Hydraulic

    Flow 103 l/min
    Pressure 230 bars

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/0
    Number of steering wheels (front/rear) 0/2
    Tyre dimensions (front) 315/70 R22.5
    Tyre dimensions (rear) 225/75 R15
    Standard mast type Duplex
    Standard mast height (when raised) 2.775 m 9’1″
    Standard mast height (when raised) 4.677 m 15’4″
    Driving position noise levels 81 dB

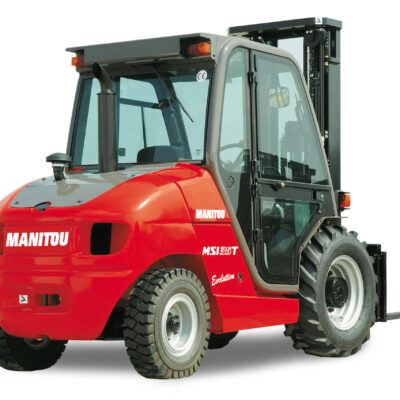

  • Manitou Masted Forklift Trucks msi 35

    MSI 35

    Lifting height 3.3 m 10’10”
    Lifting capacity 3500 kg 7700 lb
    Weight (unladen) 8420 kg 18524 lb
    Engine Perkins 3B
    Power   55 KW

    Performances

    Lifting height 3.3 m 10’10”
    Lifting capacity 3500 kg 7700 lb
    Drawbar pull 2005 dan
    Moving speed 20 kmh 12.4 mph
    Mast inclination (front/rear) ( 10 ° / 12 ° )

    Dimensions

    Length (up to the back of the fork) 3.03 m 9’11”
    Total length (fork included) 4.13 m 13’7″
    Wheelbase length 1.8 m 5’11”
    Width 1.32 m 4’4″
    Fork carriage width 1.26 m 4’2″
    Aisle width (with a 1000 x 1200 palette) 4.59 m 15.06
    Aisle width (with a 800 x 1200 palette) 4.7 m 15.38
    Height 2.3 m 7’6″
    Weight (unladen) 4845 kg 10659 lb
    Front axle weight (laden) 7430 kg 16380 lb
    Front axle weight (unladen) 1730 kg 3814 lb
    Rear axle weight (laden) 915 kg 2017 lb
    Rear axle weight (unladen) 3115 kg 6867 lb
    Turning radius 2.59 m 8’6″
    Ground clearance 0.26 m 0’10”

    Engine / Battery

    Energy Diesel
    Engine brand Kubota
    Engine type Stage 3A
    Engine manufacturer type V2403 M TE3
    Power 36 KW
    Number of cylinders 4
    Total capacity 2434 cm3 148.5 in3
    Transmission type Hydrostatic

    Hydraulic

    Flow 77 l/min
    Pressure 190 bars

    Other specifications

    Standard tyres Pneumatic
    Number of wheels (front/rear) 2/2
    Number of drive wheels (front/rear) 2/0
    Number of steering wheels (front/rear) 0/2
    Tyre dimensions (front) 275/70 R22.5
    Tyre dimensions (rear) 7.00X12 14 PR
    Standard mast type Duplex
    Free lift (standard mast, lowered) 0.135 m 0’5″
    Standard mast height (when raised) 2.3 m 7’6″
    Standard mast height (when raised) 4.193 m 13’9″
