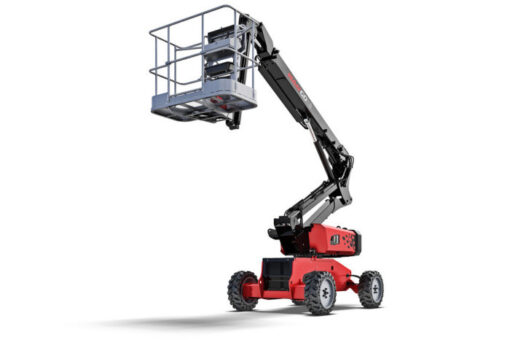

Manitou Mango 12

MAN’GO 12

The MAN’GO 12 aerial work platform is a new concept in platforms, combining the benefits of both articulated and telescopic platforms. Originally designed for rental operators, it’s also perfectly suited to professionals who need to get people up to 12m in height for construction applications as wells as industry professionals.

Compact and suited for all-terrain, it can easily navigate congested work sites and tight storage spaces. Once collapsed, its small chassis allows for easy storage, and with simple controls and upkeep, it also gives you performance levels that will impress your operators.

Categories: , ,

Description

Lifting height 11.91 m 39’0″
Lifting capacity 230 kg 507 lb
Weight (unladen) 4150 kg 9149 lb
Engine Kubota E2B
Power 19.4W 26.4 hp

Performances

Lifting height 11.91 m 39’0″
Lifting capacity 230 kg 507 lb
Lifting capacity (no. of people) 2
Exterior lifting capacity (no. of people) 2
Max reach 6.69 m 21’11”
Overhang 4.8 m 15’8″
Moving speed 5.2 kmh 17 mph
Working speed 0.8 kmh 2.62 mph

Dimensions

Overall length 5.5 m 18’0″
Overall length (folded) 4.5 m 14’9″
Wheelbase length 2 m 6’7″
Width 1.8 m 5’11”
Height 2.015 m 6’7″
Overall height (folded) 2.495 m 8’2″
Weight (unladen) 4150 kg 9149 lb
Turning radius 4.115 m 13’6″
Ground clearance 0.32 m 1’0″

Engine / Battery

Energy Diesel
Engine brand Kubota
Engine manufacturer type D1105-E2B
Power 26.4 cv 26 hp
Power 19.4 KW
Number of cylinders 3
Total capacity 1123 cm3 68.52 in3
Injection Direct
Cooling Water
Transmission type Hydrostatic

Hydraulic

Pressure 400 bars
Hydraulic oil tank volume 60 l 15.85 gal

Other Specifications

Number of wheels (front/rear) 2/2
Number of drive wheels (front/rear) 2/2
Number of steering wheels (front/rear) 2/0
Number of braking wheels (front/rear) 2/2
Tyre dimensions (front) 720 x 240 mm
Tyre dimensions (rear) 720 x 240 mm
Environmental noise levels 100 dB
Vibrations affecting hands/arms <2.5 m/s
